| Type |

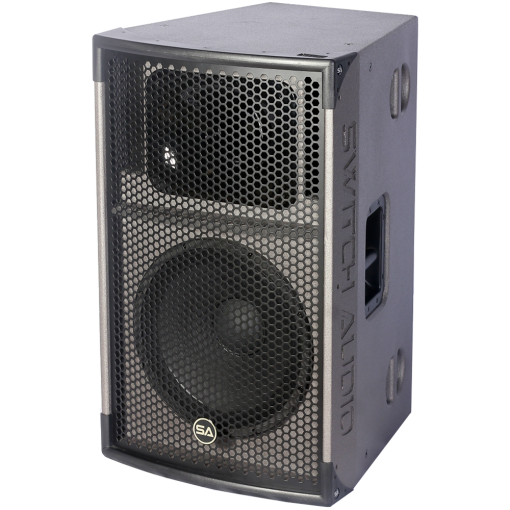

Full Range Speaker |
| Frequency Response |
50Hz-19KHz ± 3dB |
| Power Handling |
800W (RMS) / 1600W (PEAK) |
| Operating Mode |
Passive |
| Dispersion |
130º H × 110º V |
| Sensitivity |
98dB |
| Max S.P.L |
128dB (Peak / 1M) |
| LF Section |
15″ (200mm ferrite magnet) woofer, 100mm (4in) Voice coil |
| HF Section |
3” Compression driver with 38 mm throat |
| Nominal Impedance |
8 Ohm |
| Rigging System |
9 × M10 Mounting Points |
| Input Connectors |
2 × NL4MP Speakon |
| Construction |
18mm Grade A Multilayer High Density Plywood |
| Dimensions (W × H × D) |
515 × 1240 × 677 mm |
| Net Weight |
49 KG |
